Understanding FR4 PCB Manufacturing Economics
The economic landscape of FR4 PCB production involves complex interdependencies between material specifications, manufacturing processes, and design requirements. Modern electronics manufacturers face increasing pressure to optimize costs without compromising reliability, particularly in high-volume applications where marginal savings compound significantly.
Market Dynamics Affecting FR4 PCB Pricing
Current market conditions influence FR4 laminate pricing through raw material fluctuations, supply chain constraints, and manufacturing capacity utilization. Copper prices, epoxy resin availability, and fiberglass cloth supply directly impact base material costs, while manufacturing facility efficiency determines processing expenses.
Volume Economics and Scaling Effects
Production volume creates substantial cost leverage in FR4 PCB manufacturing. Economies of scale affect setup costs, material utilization efficiency, and labor allocation, with cost-per-unit reductions typically ranging from 15-40% when transitioning from prototype to production volumes.

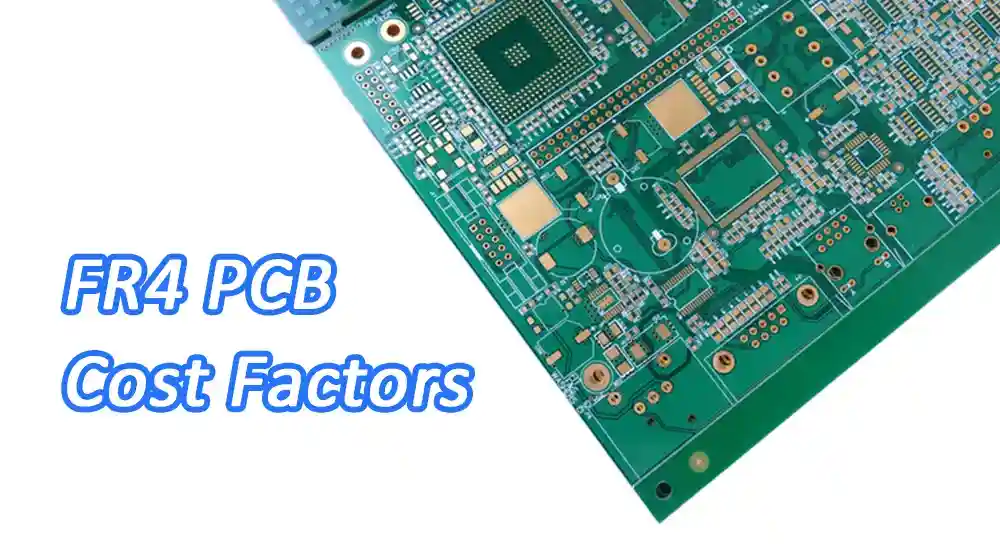

FR4 PCB Cost Factors
Comprehensive cost analysis reveals multiple interconnected factors that determine final FR4 PCB pricing. Professional understanding of these elements enables targeted optimization strategies and informed vendor selection decisions.
Primary Material Cost Components
Base Laminate Specifications: Standard FR4 thickness variations (0.8mm, 1.6mm, 2.0mm) create cost differentials of approximately 20-35%. Copper weight selection between 1oz and 2oz directly affects material expenses, with heavier copper adding 15-25% to base costs.
Prepreg and Core Materials: Multi-layer constructions require additional prepreg layers and cores, with each additional layer increasing material costs by 25-40%. High-Tg FR4 variants command premium pricing of 30-50% over standard FR4 materials.
Manufacturing Process Cost Drivers
Drilling Operations: Via count and diameter specifications significantly impact drilling costs. Micro-vias (below 0.1mm) require specialized equipment and increase processing costs by 200-300% compared to standard mechanical drilling.
Plating and Surface Finish: HASL (Hot Air Solder Leveling) provides cost-effective finishing, while ENIG (Electroless Nickel Immersion Gold) adds 40-60% to surface treatment costs. OSP (Organic Solderability Preservative) offers economical alternatives for specific applications.
Design Complexity Variables
Layer Count Impact: Each additional layer introduces lamination cycles, registration challenges, and testing requirements. Four-layer boards typically cost 50-70% more than two-layer equivalents, while eight-layer constructions increase costs by 150-200%.
Trace Geometry Requirements: Fine-pitch designs below 4-mil trace/space require advanced manufacturing processes and specialized equipment, increasing costs by 25-50% compared to standard 6-mil designs.
Design Optimization Strategies for Cost Reduction
Strategic design modifications provide substantial cost reduction opportunities without compromising functionality. Engineering teams can implement specific design-for-manufacturing principles that directly reduce production expenses.
Layer Count Minimization Techniques
Signal Routing Optimization: Advanced routing algorithms and component placement strategies can reduce layer requirements by 20-30% in complex designs. Careful impedance planning enables efficient signal distribution across fewer layers.
Power Distribution Efficiency: Integrated power plane designs and strategic via placement reduce the need for dedicated power layers, particularly in mixed-signal applications with moderate current requirements.
Standard Dimension Optimization
Panel Utilization Maximization: Designing boards to fit standard panel sizes (18″ x 24″, 21″ x 24″) optimizes material utilization and reduces per-unit costs by 10-20%. Custom panel sizes often result in significant material waste and higher expenses.
Aspect Ratio Considerations: Maintaining board aspect ratios between 1:1 and 3:1 improves panelization efficiency and reduces handling complexities during manufacturing.
Material Selection and Procurement Tactics
Strategic material selection and procurement approaches create substantial cost advantages while maintaining performance specifications. Professional procurement strategies address both immediate cost reduction and long-term supply chain stability.
FR4 Grade Selection Criteria
Standard vs. High-Performance Materials: Standard FR4 materials meet most application requirements at significantly lower costs than specialized variants. High-frequency applications may require premium materials, but careful analysis often reveals standard FR4 sufficiency for frequencies below 1 GHz.
Copper Foil Optimization: Selecting appropriate copper weights based on current carrying requirements prevents over-specification. One-ounce copper handles most signal applications, while power distribution sections can utilize selective copper thickening only where necessary.
Supplier Relationship Management
Multi-Vendor Strategies: Developing relationships with multiple FR4 suppliers creates pricing leverage and supply security. Qualified vendor lists should include regional and global suppliers to optimize cost and delivery performance.
Long-Term Contracts: Volume commitments enable preferential pricing structures, typically reducing material costs by 8-15% compared to spot pricing. Flexible contracts accommodate demand fluctuations while securing cost advantages.
Production Efficiency and Quality Balance
Optimizing production efficiency while maintaining quality standards requires careful balance between cost reduction initiatives and reliability requirements. Advanced manufacturing techniques and quality systems enable sustainable cost optimization.
Manufacturing Process Optimization
Automated Processing Integration: Automated optical inspection (AOI) and electrical testing reduce labor costs while improving defect detection rates. Initial equipment investments typically provide 18-24 month payback periods through labor savings and quality improvements.
Yield Enhancement Programs: Systematic defect analysis and process control improvements increase manufacturing yields by 5-15%, directly reducing per-unit costs through improved material utilization and reduced rework requirements.
Quality System Cost Integration
Prevention-Based Quality: Implementing robust design reviews and manufacturing process controls prevents costly defects and rework. Quality prevention systems typically reduce total costs by 3-8% compared to detection-based approaches.
Statistical Process Control: Real-time monitoring of critical manufacturing parameters enables early intervention and prevents batch-level quality issues that create substantial cost impacts.
